Non-contact measuring laser capable of the world’s fastest measurement speed for instant analysis
- Product Description
-
RaptorEye2 is a TTS original scanning sensor developed based on our accumulated experiences over the years. It’s an ultra high-speed sensor with max. 400Hz scanning rate and 660,000 points / sec. It’s compatible with various kinds of devices used in the whole industry and is the fastest 3D sensor for in-line measurement. Due to instant shape analysis capability, it has a tremendous effect when you want to measure quickly, measure large objects, or increase number of measurement.
*Laser Class: Class 2

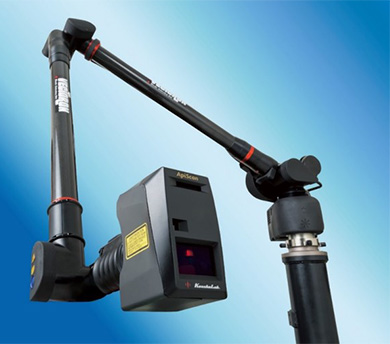

*Application: for attaching to the arm-type measurement machine VECTORON
The sensor is suitable for inline applications and other tracking systems.
Product Features
Product Specifications
| Sensor | |
|---|---|
| Size | 69(W)×113(D)×145(H)mm |
| Weight | Approx. 550g |
| Measurement Z range | ±60mm |
| Standoff | 200mm |
| X Pitch | 0.06mm or longer |
| Field Length (Width) | 86～160mm |
| Point / line | 1668 points / line |
| Line / sec | 400 lines / sec |
