The Absolute Arm is an articulated CMM with a modular structure of 7-axis system that allows flexible handling and a high degree of freedom in measurement.
It is designed for measurement in any location, from inspection rooms to humid and dusty production plants.
It is also easily portable and requires no pre-measurement preparations, complicated setups, or precision adjustments.
Product Features
•Encoder
High accuracy can be maintained regardless of the measurement technique or posture of the user.
•Portability
True wireless connectivity and hot-swappable batteries ensure flexibility when moving the arm around the factory, and full-speed WIFI scanning performance.
•SHINE Technology
Provides consistently adequate scanning performance, even on shiny black plastic automotive body parts.
High-precision non-contact scanner
Absolute Scanner AS1
High quality scan data is acquired at full speed for any parts.
Even shiny black resin parts can be measured.

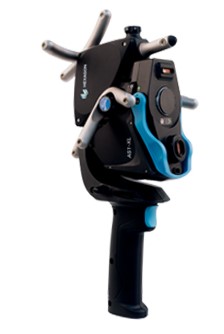

Absolute Scanner AS1-XL
Acquires 3D scan data over a wide area at high speed.
3D Data Analysis Software
Either 3D-MagicREGALIS or Polyworks can be selected according to the customer’s application.
➢3D-MagicREGALIS is our proprietary software.
➢It is easy to use and has been evaluated favorably by our existing users.
Create Your Own Report Forms and Automatically Output Measurement Results
Once the REGALIS Report Generator is installed, reports can be created in any format. You can create an easy-to-understand directional station that summarizes only the necessary items. It automatically outputs reports after measurement, greatly reducing the man-hours required for report creation.
List Data Groups, Graphs and Reports
Display error values and statistics graphically when analyzing the same control points in multiple data groups.
Results can be easily compared on the REGALIS screen.
Comparison results and graphs can also be output to an Excel report.
Other
Protection of absolute accuracy
International standard ISO10360 Probing accuracy certification
IP54（Waterproof）
The Absolute Arm system is the first portable measuring arm with IP54* rating, which guarantees protection against all dust and moisture.
Scanning operations can be performed with high productivity even in harsh environments such as workshops and foundries. Furthermore, it is the ideal solution for measurements in areas where humidity and dust are unavoidable.
*5 = Dust protection
Protects against dust to the extent that it does not interfere with use, but does not completely prevent ingress.
4 = Water splash
Water splashed from any direction has no harmful effects.
Product Specifications
Model：8535-7
| Model | E-uni | Psize | L dia | P form | RS6 SSA | Weight | Max. reach |
|---|---|---|---|---|---|---|---|
| 8535-7 | |||||||
| 0.064mm | 0.022mm | 0.092mm | 0.041mm | 0.068mm | 9.9kg | 3.98m | |
| ISO10360-12:2016 Standard |
― | ― | ― | ||||
| Contact | Scanning system accuracy | ― | ― | ||||
